Thin load cell 5kg 10kg 20kg 50kg 100kg Low profile compression load sensor

Name: Thin load cell 5kg 10kg 20kg 50kg 100kg Low profile compression load sensor
Brand: Forsentek
Price: 1 USD

Brand Name : Forsentek

Model Number : FCCK

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 2125pcs/month

Delivery Time : 3~20 working days

Packaging Details : Carton

Certification : CE

Usage : Compression force measurement

Type : Low profile force transducer

Output : Analog Sensor

Capacity : 50N 100N 200N 500N 1kN

Sensor height : 4mm

Contact Now

Thin load cell 5kg 10kg 20kg 50kg 100kg Low profile compression load sensor

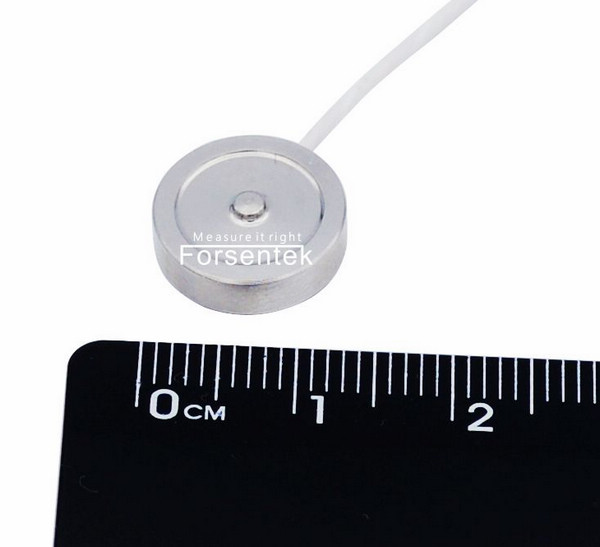

Miniature compression load cell FCCK is made of stainless steel based on strain gauge technology,very compact size with 12.7mm outer diameter and 3.95mm height.Miniature low profile load cell FCCK offers 50N / 100N / 200N / 500N / 1kN five measuring ranges to choose from. High output resistance,low heat emission,you may find load button load cell FCCK suitable for applications such as clamping force measurement, force overload protection, load distribution measurement, pressing die force measurement, auto equipment, medical divices ,assembly line,etc..

Thin load cell 5kg 10kg 20kg 50kg 100kg Low profile compression load sensor

Dimensions(in "mm")

Thin load cell 5kg 10kg 20kg 50kg 100kg Low profile compression load sensor

Specifications

Capacity	50N / 5kg / 11lb 100N / 10kg / 22 lb 200N / 20kg / 44lb 500N / 50kg / 110 lb 1kN / 100kg / 220lb
Rated output	1.5mV/V
Excitation	3-12V
Zero balance	±0.1mV/V
Nonlinearity	±2% R.O.
Hysteresis	±2% R.O.
Nonrepeatability	±0.5% R.O.
Creep(3min)	±0.5% R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temperature	-10...+40^oC
Operating temperature	-20...+60^oC
Temperature shift zero	±0.05% R.O./^oC
Temperature shift span	±0.05% R.O./^oC
Input resistance	1000±100 ohms
Output resistance	1000±100 ohms
Insulation resistance	>2000M ohms
Ingress protection	IP65
Material of element	Stainless steel
Cable	Ø1.2*3000mm 4-conductor
Wiring code	Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal-

Thin button load cell 5kg 10kg 20kg 50kg 100kg Low profile compression loadcell force sensor

Thin load cell 5kg 10kg 20kg 50kg 100kg Low profile compression load sensor

Click here to download datasheet
